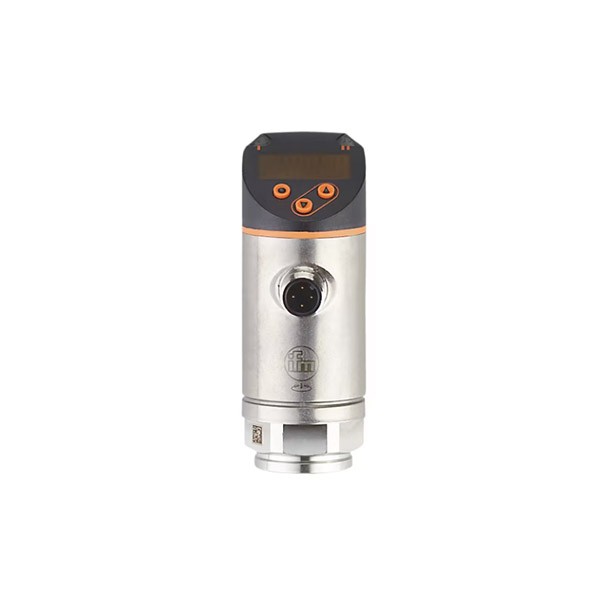

IFM PN7071 IO Link Pressure Sensor with Display

IFM PN7071 is an industrial pressure sensor with display and IO Link communication. It is designed for pressure monitoring in industrial automation, machine control and process applications.

Main Model: IFM PN7071

Product Type: IO Link Pressure Sensor with Display

Measuring Range: 0 to 250 bar

Pressure Type: Relative pressure

Digital Outputs: 2

Communication: IO Link 1.1

Display: Red and green 4 digit display

Process Connection: G 1/4 internal thread

Electrical Connection: M12 connector

IFM PN7071 Product Information

IFM PN7071 is a pressure sensor with an integrated display for industrial applications. The sensor provides a measuring range of 0 to 250 bar and is designed to monitor system pressure in machinery and industrial equipment.

The PN7071 has two digital switching outputs. One of the outputs provides IO Link communication, allowing parameter setting, process data transmission and sensor diagnostics through a compatible IO Link master.

The integrated red and green 4 digit display provides clear local indication of the measured pressure and switching status. The process connection can also be rotated to help achieve a suitable installation position.

Key Features of IFM PN7071

• IFM PN7071 industrial pressure sensor

• 0 to 250 bar measuring range

• Two configurable digital switching outputs

• One output with IO Link communication

• IO Link revision 1.1

• Red and green 4 digit display

• PNP and NPN configurable electrical design

• Normally open and normally closed output functions

• G 1/4 internal thread process connection

• M12 electrical connector

• Operating voltage from 18 to 30 V DC

• Suitable for liquids and gases

• Designed for industrial applications

• IP65 and IP67 protection

IFM PN7071 IO Link Communication

IO Link allows IFM PN7071 to transmit pressure process data and diagnostic information to the control system. Parameters can also be configured remotely through the IO Link interface.

According to IFM documentation, the PN pressure sensor family can use IO Link for current system pressure information, sensor diagnostics and remote parameterization.

Industrial Applications

IFM PN7071 can be used for pressure monitoring in industrial machinery, hydraulic systems, pneumatic equipment and process automation.

• Industrial machine pressure monitoring

• Hydraulic system pressure monitoring

• Pneumatic equipment

• Machine control systems

• Industrial process monitoring

• Production equipment maintenance

• Pressure sensor replacement applications

Related IFM Models

The following IFM models are related sourcing references supplied for this product page. They cover different IFM sensor, process monitoring, identification, communication and automation product families.

These models should not be considered direct replacements for IFM PN7071 without checking the complete technical requirements, connection, measuring range, output configuration and application.

• IFM NI5003

• IFM VSA201

• IFM ID9922

• IFM UGT206

• IFM LDL200

• IFM IE5344

• IFM TA2531

• IFM II5489

• IFM SF5350

• IFM II0005

• IFM LDH100

• IFM IN5331

• IFM LDL100

• IFM PN2271

• IFM PY9060

• IFM TM4411

• IFM E33340

• IFM OGP500

• IFM IM0011

• IFM AC1253

• IFM TN2531

• IFM O6H301

• IFM E11248

• IFM CR2041

• IFM E43309

• IFM IS5070

• IFM PIM694

• IFM LT8022

• IFM SM4000

• IFM PK6520

• IFM PI2895

• IFM OF5012

• IFM IFT205

• IFM EVC811

• IFM PK7521

• IFM TR2439

• IFM PK6521

• IFM IFS208

• IFM IFS205

• IFM IFS209

• IFM KI5023

• IFM IFS244

• IFM TA2415

• IFM SD6500

• IFM TK7110

• IFM IFW200

• IFM PT5401

• IFM IFR203

• IFM O5E500

• IFM SV5200

• IFM E80404

• IFM KQ6001

• IFM IG5497

• IFM KI5052

• IFM O5D100

• IFM IG5555

• IFM IEW200

• IFM PQ7834

• IFM IFS240

• IFM O5S500

• IFM KD5018

• IFM SD6600

• IFM PK6734

• IFM IER200

• IFM MX5017

• IFM G2001S

• IFM KI6000

• IFM PN4220

• IFM SD2500

• IFM AC1422

• IFM VSE150

• IFM OY113S

• IFM IM5033

• IFM MVQ101

• IFM SM2100

• IFM TA2232

• IFM IF5930

• IFM OGT302

• IFM SM8020

• IFM EVF071

• IFM OPU201

• IFM O6H203

• IFM O6H303

• IFM AC2264

• IFM SA4120

• IFM MGT203

• IFM NG5019

• IFM IGM202

• IFM O2I501

• IFM KF5001

• IFM PM2054

• IFM IIT204

• IFM EVT062

• IFM IZ5052

• IFM IFS213

• IFM TD2811

• IFM AC2451

IFM PN7071 Replacement and Sourcing

When sourcing an IFM PN7071, customers should confirm the complete model number and the required technical configuration before ordering.

Important information includes the measuring range, process connection, electrical connection, switching output configuration and IO Link requirements.

For replacement applications, the model number shown on the existing sensor label should be used as the primary reference. A product label photo can also help confirm the requested model.

Frequently Asked Questions

What is IFM PN7071?

IFM PN7071 is an industrial pressure sensor with an integrated display, two switching outputs and IO Link communication.

What is the measuring range of IFM PN7071?

IFM PN7071 has a measuring range of 0 to 250 bar, according to the official IFM product information.

Does IFM PN7071 support IO Link?

Yes. IFM PN7071 supports IO Link 1.1 communication. IO Link can be used for process data, parameter setting and sensor diagnostics.

Does IFM PN7071 have a display?

Yes. PN7071 has a red and green 4 digit alphanumeric display for local indication of measured values and operating status.

What process connection does IFM PN7071 use?

IFM PN7071 uses a G 1/4 internal thread process connection.

How many outputs does IFM PN7071 have?

IFM PN7071 has two configurable digital switching outputs. The output signal can be configured for switching operation and IO Link communication.

Can the related IFM models directly replace PN7071?

Not necessarily. The related models are provided as additional sourcing references. Direct compatibility should be confirmed using the complete model number, measuring range, process connection, electrical configuration and application requirements.

How can I request a quotation for IFM PN7071?

Send the complete IFM PN7071 model number, required quantity, destination country and a product label photo if available. This information can be used to check the exact sourcing requirement.

Request IFM PN7071 Quotation

Please provide the model number, quantity and destination country. For replacement projects, a photo of the existing IFM product label can also be provided for model confirmation.
