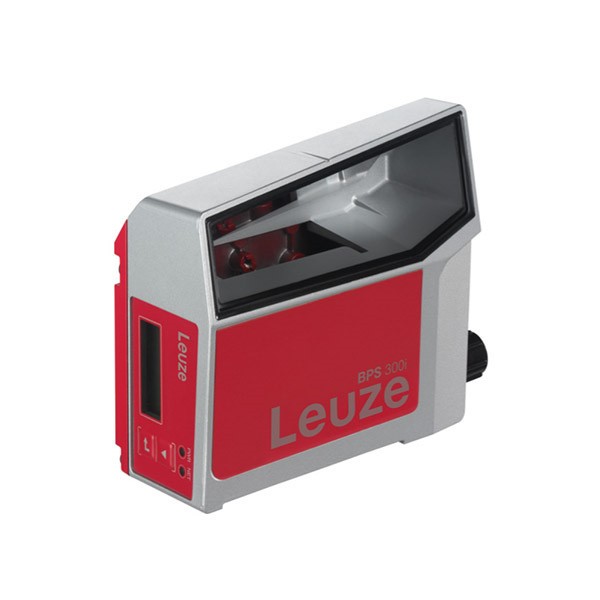

The Leuze 50124982 BPS 348i SM 100 D is a barcode positioning system from the Leuze BPS 300i series. It is designed for position measurement in automated material handling systems where accurate position feedback is required for controlled movement and equipment positioning.

The system uses barcode-based position measurement and provides process data through a PROFINET interface. It is suitable for evaluation in applications such as automated storage and retrieval systems, conveyor installations, transfer units and industrial handling equipment, subject to the requirements of the complete machine.

Product Identification

Manufacturer: Leuze
Part Number: 50124982
Model: BPS 348i SM 100 D
Product Series: BPS 300i
Product Type: Barcode Positioning System
Communication Interface: PROFINET
Typical Application: Industrial position measurement and automated material handling

For purchasing inquiries, provide the complete part number, required quantity and destination country to request availability confirmation and a quotation.

Technical Specifications

The following specifications are published for the Leuze 50124982 BPS 348i SM 100 D. Please check the manufacturer's latest datasheet and operating instructions before installation or replacement.

Specifications are provided for model identification and preliminary evaluation. Check the exact product revision, connection accessories, mounting requirements and current manufacturer documentation before ordering.

PROFINET CommunicationProvides a process communication interface for integration with compatible industrial controllers and automation networks.

0.05 mm RepeatabilityPublished repeatability of 0.05 mm, 1 sigma, supports applications where repeatable position measurement is an important selection criterion.

2 ms Measurement OutputA short measurement output interval supports frequent position updates in appropriately configured control systems.

High Traverse SpeedThe published maximum traverse rate is 10 m/s. Actual performance depends on the installation, barcode tape and operating conditions.

USB Service InterfaceThe service interface supports configuration and service work using the manufacturer's supported tools and documentation.

Compact Industrial HousingThe cubic metal housing and specified mounting features support integration into suitable industrial equipment layouts.

Typical Industrial Applications

1. Automated Storage and Retrieval Systems

Position feedback can help a compatible storage and retrieval system determine the location of moving equipment along a defined travel path. System designers must verify the required accuracy, speed, barcode tape arrangement and controller interface.

2. Conveyor and Transfer Systems

In automated conveyor installations, position information can support controlled movement, transfer sequencing and equipment coordination. The complete application must be engineered around the travel path, mechanical layout and control requirements.

3. Industrial Material Handling

Automated handling systems may use position measurement to coordinate movement between defined locations. The BPS 348i SM 100 D can be evaluated where barcode-based position feedback and PROFINET communication fit the system design.

4. Automated Production Equipment

Position measurement may be used to monitor moving assemblies and provide position data to machine control systems. Verify whether the required position reference, measurement range and update timing are suitable for the specific machine.

Related Leuze Models and Part Numbers

The following list contains additional Leuze part numbers supplied for related sourcing inquiries. It includes positioning systems, barcode and measurement products, sensors, safety components, cables and accessories.

These items are provided as related product and purchasing references only. They are not all direct replacements for the BPS 348i SM 100 D. Confirm each product's function, interface, dimensions and compatibility against the relevant manufacturer's documentation.

50137191 LE3C/4W-200-M8

68001112 MLC510R14-1200

68000404 MLC500T40-450

50109653 IS 208MM/4NO-2E0-S8.3

68001404 MLC510R40-450

68001109 MLC510R14-900

68001409 MLC510R40-900

50136953 ODS9L2.8/LA6-650-M12

50138063 ODS110L1.3/LCT-M12

68000112 MLC500T14-1200

66533200 MLD510-R3

50101882 ODSL 96K/66-2300-S12

50133016 MSI-SR-CM43-01

50112137 PRK 2/42,150-S8

50133652 PRK3C.T3/4P-M8

50121229 PRK18B.TT3/4P-M12

50129376 HT3C/4P

50133665 PRK3C.BT3/4P

50138223 PRK25C.D/PX-M12

50149298 PRK5B.M1/4

50133624 PRK3C.A3/LP-M8

50150315 PRK35CPP.AX2/LG-M12

63000404 S410-M1CB2-B

50132911 REF 7-A-15-30 SET

63000401 S400-M4M12-B

50038060 REF 4-A-50X1000

50104361 Reflexfolie 200x200mm-S

50107002 VDB 112B/6P

50032097 BCL 22 SM 312

50108998 DB 18 UP.1-25,2500

50121918 SLE46C-40.K2/4P

50141477 ISS 212MM/44-8N0-S12

50112155 S-M12A-ET

50148805 BPS 3007I SM 100

50119735 CML720i-R05-1680.A/L-M12

50116859 PRK318B/4P-M12

50137593 AMS 3007I 40

50136986 HT46CL2/6G-M12

50146167 GS04B/P.1-80-M8.3

50119663 CML720i-R20-470.A/CN-M12

50127222 AMS 348i 300 SSI

50129752 HT46C/4P-200-M12

50108362 ODSL 8/C66-200-S12

50137813 ODS9L2.8/LA6-450-M12

50036354 LSSR 8-S12

50131027 DDLS 508 120.0

50146971 ODS9L1.8/LAK-1050-M12

50116434 BCL 348i R1 M 102

68003912 MLC530R90-1200

50146162 GS04B/P.1-30-M8.3

50142870 IGSU14E/LWT.3-M12

50131550 HT46C.E/4P-M12

50036280 DDLS 200/200.1-10

50036281 DDLS 200/200.2-10

50040720 ODSL 30/24-30M-S12

50039937 DDLS 200/120.1-50

50109343 LRT 8/24.04-100-S12

66568200 MLD530-RT3M

50131030 DDLS 508 120.0 L

50128783 DCR 202i FIX-M1-102-R3

50132930 DDLS 508 200.4 L

50116471 MS 348

50133320 L100-P3C3-M20-MLM24-Z0

50113714 AMS 348i 120 H

549998 ML2R-SR4

50125679 BPS 307i SM 100

50132934 DDLS 508 120.4 L H

50148492 KRT3CM.L3S2/4T-M8

66568100 MLD530-RT2M

50036356 LSER 8/44-S12

50125678 BPS 307i SM 100 D

50132933 DDLS 508 120.3 L H

68001321 MLC510R30-2100

50105467 BCL 500i OF 100

63000602 L100-P4C3-M20-SLM24

50134432 DDLS 548i 200.4 L

53800252 RSL420-M/CU416-300-WPU

50134431 DDLS 548i 200.3 L

50132929 DDLS 508 200.3 L

50115269 HRTR 55/66-S8 Ex

50033552 IPRK 18/4 DL.41

50113681 AMS 304i 40 H

72000312 ELC100T30-1200

50039447 ODSL 30/V-30M-S12

50025609 PRK 95/44 L.4

50041840 LRT 8/24.04-50-S12

72001312 ELC110R30-1200

53800107 RSL430-M

53800115 RSL430-XL

50129541 HT10L1-25M.3/L69-M12

Frequently Asked Questions

1. What is the Leuze 50124982 BPS 348i SM 100 D?

It is a barcode positioning system in the Leuze BPS 300i series. It is used for position measurement in compatible industrial automation and material handling systems.

2. Which communication interface does this model use?

The published product specification lists PROFINET as the process interface. Confirm the controller configuration and GSDML requirements before commissioning.

3. What is the repeatability of the BPS 348i SM 100 D?

The manufacturer's specification lists repeatability of 0.05 mm, 1 sigma. This figure should not be treated as a guarantee of total machine positioning accuracy, which also depends on the barcode tape, installation, mechanics and control system.

4. What is the measurement output interval?

The published measurement value output interval is 2 ms. Confirm the required controller update rate and system configuration for the intended application.

5. Is the BPS 348i SM 100 D the same as the BPS 348i SM 100?

They are distinct model designations. The manufacturer's order guide identifies 50124982 as BPS 348i SM 100 D with PROFINET RT and display, while 50124983 is BPS 348i SM 100 with PROFINET RT. Confirm the exact configuration before purchasing.

6. Does the product include barcode tape and connection accessories?

Do not assume all accessories are included. Check the exact order scope for barcode tape, connection hood, power cable, network cables and mounting components before ordering.

7. Can this model replace another Leuze positioning system?

Compatibility cannot be assumed from the brand or product family alone. Verify the interface, measuring principle, mounting, barcode tape, configuration and control-system requirements before selecting a replacement.

8. How can I request a quotation?

Provide part number 50124982, model BPS 348i SM 100 D, the required quantity and destination country. Availability and sourcing options can then be checked for your inquiry.
